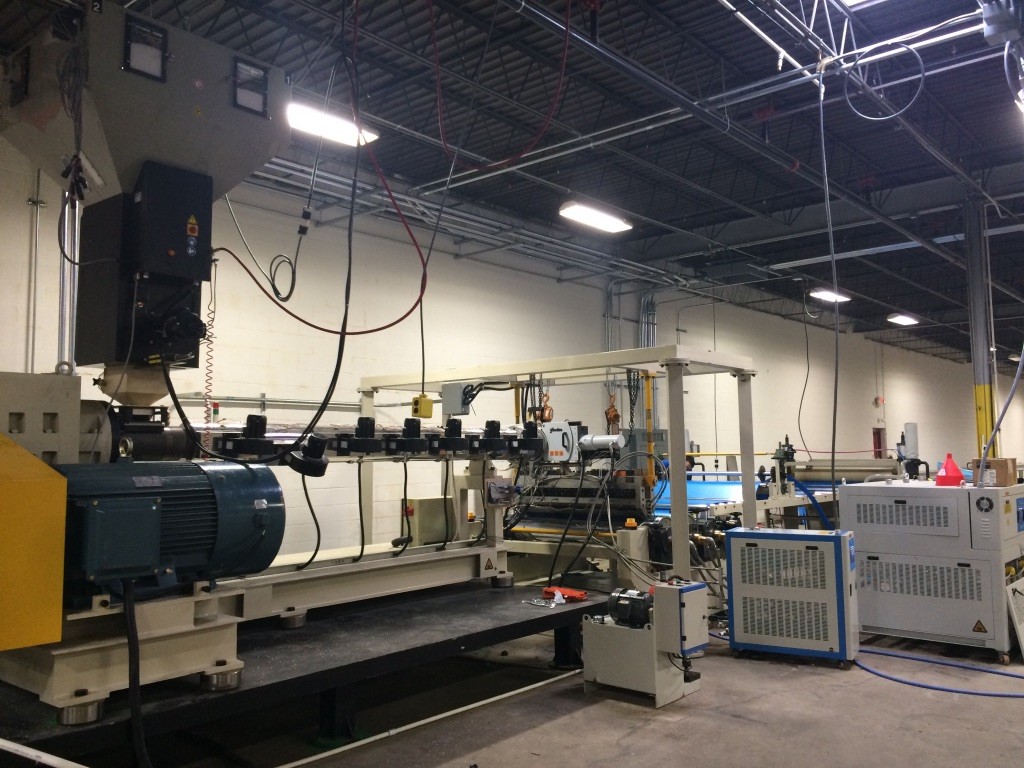

This line is specially used for producing PP/PE/PS/ABS/PVC single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Main technical data:
1. Usual sheet width: 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.
T -type die head: Suitable compression ratio to ensure uniform flow stability.
Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.
Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller
Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.
Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
| Extruder Model | LMSB-90/33 | LMSB-100/33 | LMSB-120/33 | LMS-100/65 | LMSB-120/65 |
| Sheet Width | 300-610mm | 500-950mm | 1000-1500mm | 500-950mm | 1000-1500mm |
| Sheet Thickness | 0.15-1.4mm | 0.15-1.4mm | 0.15-2mm | 0.25-1.4mm | 0.25-1.4mm |
| Driving Motor | 75KW | 90KW | 132KW | 90KW,75KW | 132KW, 65KW |
| Line Speed | 25m/min | 25m/min | 28m/min | 28m/min | 28m/min |
| Capacity | 180kg/h | 300kg/h | 550kg/h | 450kg/h | 650kg/h |
